Ultra-fine Solder Powder
Huijin’s unique atomizing and classifying technologies ensure to produce high quality of ultrafine solder powders. All of the advanced properties of Huijin’s normal size solder powders are further carried forward in the ultrafine products, such as low impurities, low oxide, smooth surface, excellent stability, and precise particle size distribution.
The most distinguishing features of Huijin’s ultrafine size solder powders products are: lower oxide, smooth surface and excellent stability. The particle surface maintains the original of the as atomized pattern. No damage impacts the particle surface during classifying. This makes it possible for the customers to simplify the ultrafine solder paste technology. It also guarantees the ultrafine paste with potential higher activity in the reflow process and higher welding reliability.

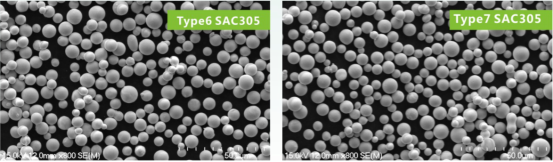

●Powder Appearance
●Particle Size Distribution Specification
Grade |
% of weight-nominal size |
|||
Main size ³90% |
Low size |
Upper size |
No large than |
|
Type 5* |
10~25μm |
max 5% <10μm |
Less than 5% >25μm |
30μm |
Type 6* |
5~15μm |
Max 5% <5μm |
Less than 10% >15μm |
20μm |
Type 7* |
2~12μm |
Max 1% <2μm |
Less than 10% >12μm |
16μm |
Type 8* |
2~8μm |
Max 1% <2μm |
Less than 10% >8μm |
11μm |
●Oxygen Content
Alloy |
Sizegrade |
Total Oxygen Content,ppm |
Typical Total OxygenContent Range,ppm |
Referenced Oxide Content,wt% |
SAC0307
SAC 105
SAC 305
SAC 405 |
Type 5 |
<150 PPM |
90~130 |
0.06~0.15 |
Type6 |
<250 PPM |
150~200 |
0.08~0.18 |
|
Type7 |
<300 PPM |
180~250 |
0.10~0.25 |
|
Type8 |
<300 PPM |
200~250 |
0.15~0.25 |
****** Oxygen level of other similarly products can also be controlled within these ranges
